The stamped steel cover on the back of your GM rear end was designed to do exactly one job: keep the fluid in. On a stock powertrain that's plenty. Start launching the car hard, and the rear axle housing gets asked to do things that thin stamped steel does nothing to help with.
Here's what's actually happening back there, and how to pick the right cover for your axle.
What Happens to a Rear End Under a Hard Launch
When you launch hard, the pinion tries to climb the ring gear, and the entire housing takes that load. The differential's bearing main caps, which hold the carrier in position, are only as rigid as the housing supporting them. Under enough torque, the housing flexes, the caps move, and the ring gear deflects away from its ideal mesh with the pinion.
Ring gear deflection is where the damage starts. Gears that mesh at the wrong contact pattern under load wear faster, run hotter, and in extreme cases break teeth. Every bit of housing flex is also energy that isn't going to the tires.
A reinforced differential cover attacks this directly. PROFORM's covers are cast from reinforced lightweight aluminum, far stiffer than stamped steel, and each one includes two bolts that stabilize the bearing main caps by tying them to the cover itself. The cover stops being a lid and becomes a structural brace, stiffening the main cap area to reduce housing flex, increase gear life, and decrease ring deflection.
First, Identify Your Rear End
The GM "10 bolt" and "12 bolt" names refer to the number of cover bolts, but the bolt count alone doesn't identify the axle. GM built multiple 10 bolt rear ends with different ring gear sizes, and they take different covers.
The GM 7.5 is the lighter 10 bolt found under many S-10s, third and fourth gen F-bodies, and G-bodies. The 8.2, 8.5, and 8.6 are the larger 10 bolt family, with the 8.5 being the respected "corporate" 10 bolt that handles real power. Measuring the ring gear or checking the casting numbers settles which one you have.
The 12 bolt splits by application. The passenger car 12 bolt and the truck 12 bolt are different housings with different cover shapes, which is why we make a specific cover for each.
The PROFORM Lineup by Application

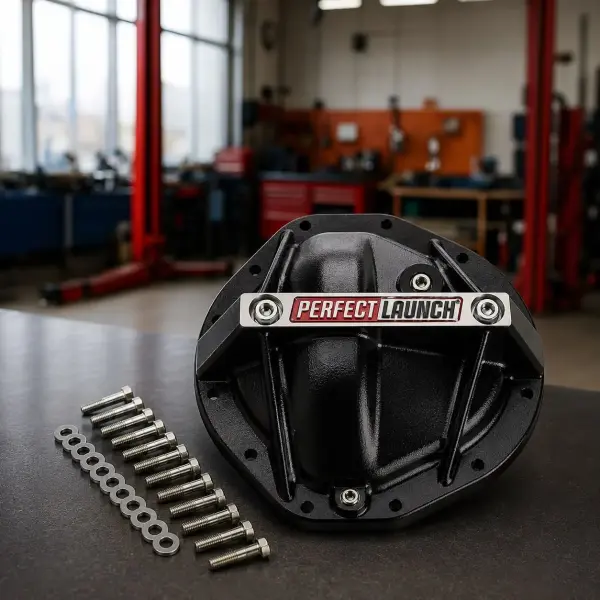

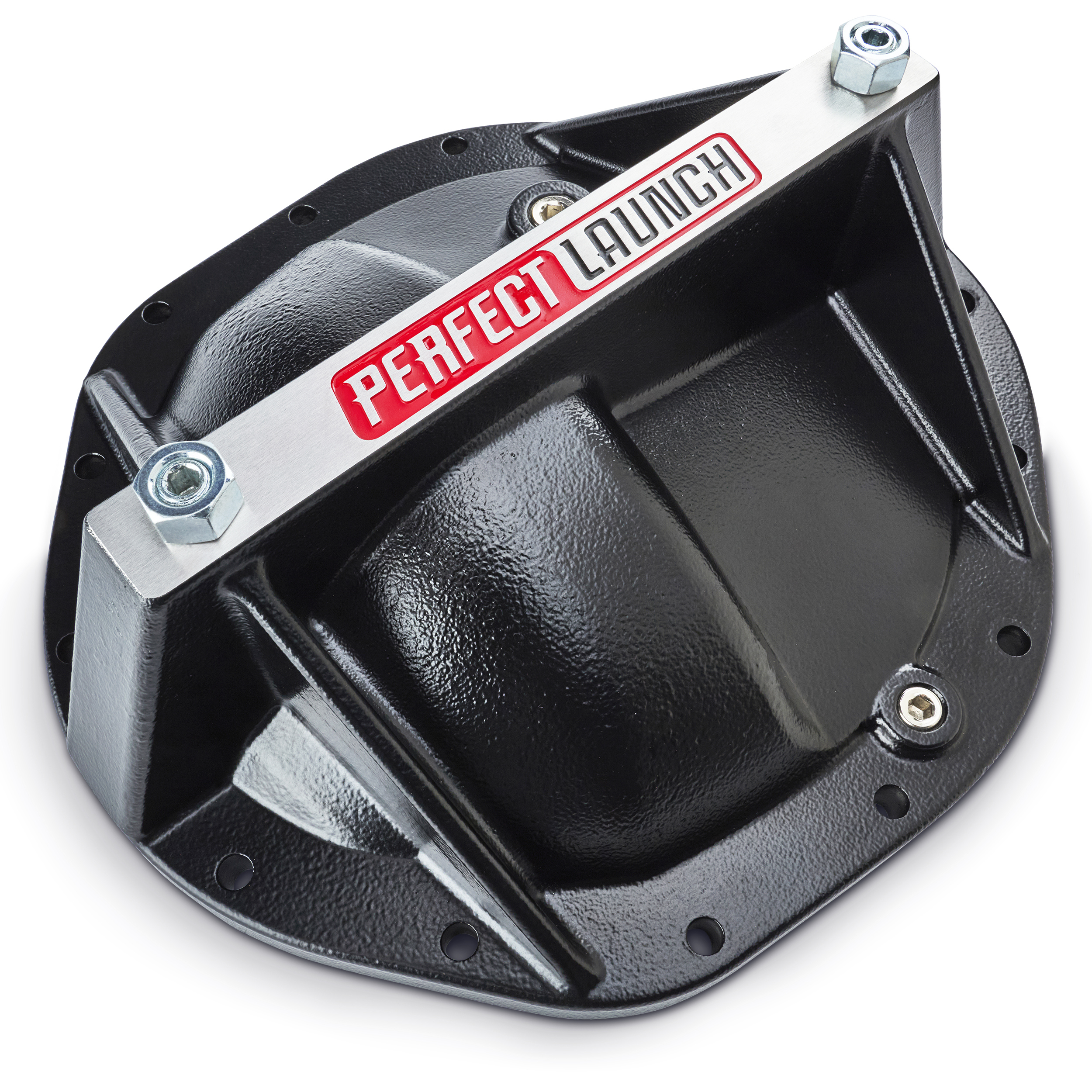

For the Perfect Launch® line in black finish with the logo on a precision milled surface, coverage runs across GM 7.5 (Part #66667), GM 10 bolt 8.2/8.5 (Part #66668), GM 12 bolt passenger car (Part #69502), GM 12 bolt truck in a low-profile design (Part #69503), GM 14 bolt 9.5" (Part #69505), Ford 8.8 (Part #69501), and Dana 60 (Part #69504). Each Perfect Launch cover includes the two main cap stabilizing bolts, two magnetic drain plugs, and mounting bolts.
For GM builds where licensed appearance matters, the Chevrolet Performance line carries the raised, precision milled Bowtie emblem. The GM 7.5 cover comes in black crinkle (Part #141-695) and cast gray crinkle (Part #141-694). The 10 bolt 8.2/8.5/8.6 cover is available in black crinkle (Part #141-696) and cast gray crinkle (Part #141-698). The 12 bolt passenger car cover comes in black crinkle (Part #141-697) and cast gray crinkle (Part #141-699), all officially licensed Chevrolet Performance products with the main cap stabilizing bolts, magnetic drain plug, fluid capacity plug, and Grade 8 mounting bolts included.
One fitment note worth catching: the Bowtie 12 bolt covers are for passenger car applications only. Truck 12 bolt owners should go to the Perfect Launch truck cover, which is shaped for that housing.
The Details That Matter Day to Day
The magnetic drain plugs earn their keep at every fluid change. Gear wear produces fine metallic particles, and the magnet collects them instead of letting them circulate through the bearings. Pulling the plug and reading what's on the magnet is also a free health check on the rear end. Some accumulation is normal during gear break-in; chunks are a warning.
The fluid capacity plug means checking and topping fluid level without pulling the cover. And Grade 8 mounting hardware in the box means no trip to the hardware store guessing at bolt specs.
Function That Happens to Look Good
The stamped cover on a GM rear end is invisible until you're under the car, and then it's usually rusty. A cast aluminum cover in black crinkle, cast gray crinkle, or the Perfect Launch black finish cleans up the view under a lifted truck or a show car on a rack, and the raised milled Bowtie on the licensed covers matches the rest of a Chevrolet Performance dress-up theme. But the honest pitch runs the other direction: buy it for the main cap stabilization and reduced ring deflection, and the looks come along free.
